Passing FCSS – SD-WAN 7.4 Architect FCSS_SDW_AR-7.4 exam is easy now. The FCSS_SDW_AR-7.4 exam basic information is useful in your preparation. There are 38 multiple-choice questions in real Fortinet FCSS_SDW_AR-7.4 exam, and you have 75 minutes to answer all the questions. The available language is English. The pass or fail score report is available from your Pearson VUE account. We provide the latest FCSS – SD-WAN 7.4 Architect FCSS_SDW_AR-7.4 exam dumps, which can ensure you pass the test easily. Free FCSS – SD-WAN 7.4 Architect FCSS_SDW_AR-7.4 exam dumps are available below.

Page 1 of 3

1. Refer to the exhibits.

Exhibit A shows two IPsec templates to define Branch_IPsec_1 and Branch_IPsec_2. Each template defines a VPN tunnel.

Exhibit B shows the error message that FortiManager displayed when the administrator tried to assign the second template to the FortiGate device.

Which statement best explain the cause for this issue?

You can assign only one template with a tunnel of fype static to each FortiGate device

You can define only one IPsec tunnel from branch devices to HUB1.

You can assign only one IPsec template to each FortiGate device.

You should review the branch1_fgt configuration for the already configured tunnel with the name HUB1-VPN2.

2. Which statement about using BGP for ADVPN is true?

You must use BGP to route traffic for both overlay and underlay links.

You must configure AS path prepending.

You must configure BGP communities.

IBGP is preferred over EBGP, because IBGP preserves next hop information.

3. Which are three key routing principles in SD-WAN? (Choose three.)

FortiGate performs route lookups for new sessions only.

Regular policy routes have precedence over SD-WAN rules.

SD-WAN rules have precedence over ISDB routes.

By default, SD-WAN members are skipped if they do not have a valid route to the destination.

By default, SD-WAN rules are skipped if the best route to the destination is not an SD-WAN member.

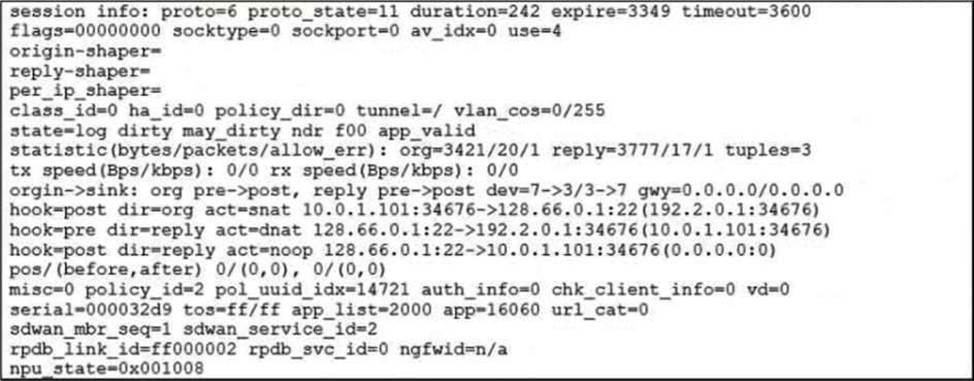

4. Refer to the exhibit.

Which statement explains the output shown in the exhibit?

FortiGate performed standard FIB routing on the session.

FortiGate will not re-evaluate the session following a firewall policy change.

FortiGate used 192.2.0.1 as the gateway for the original direction of the traffic.

FortiGate must re-evaluate the session due to routing change.

5. What are two common use cases for remote internet access (RIA)? (Choose two.)

Provide direct internet access on spokes

Provide internet access through the hub

Centralize security inspection on the hub

Provide thorough inspection on spokes

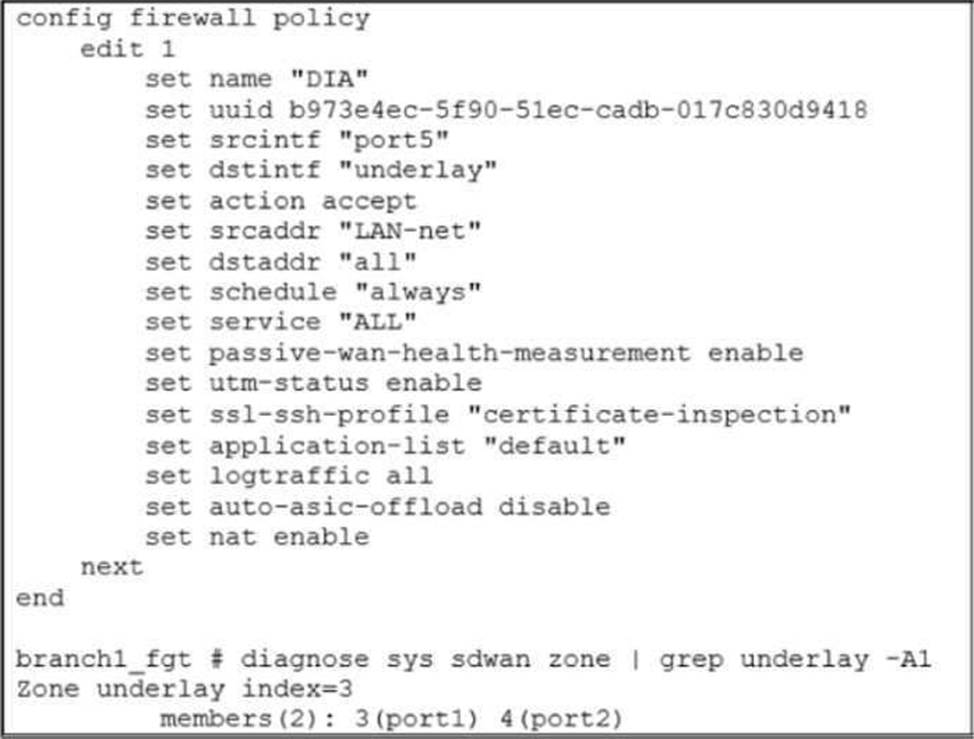

6. Refer to the exhibits.

An administrator is testing application steering in SD-WAN. Before generating test traffic, the administrator collected the information shown in exhibit A.

After generating GoToMeeting test traffic, the administrator examined the respective traffic log on FortiAnalyzer, which is shown in exhibit

B. The administrator noticed that the traffic matched the implicit SD-WAN rule, but they expected the traffic to match rule ID 1.

Which two reasons explain why the traffic matched the implicit SD-WAN rule? (Choose two.)

FortiGate did not refresh the routing information on the session after the application was detected.

Port1 and port2 do not have a valid route to the destination.

Full SSL inspection is not enabled on the matching firewall policy.

The session 3-tuple did not match any of the existing entries in the ISDB application cache.

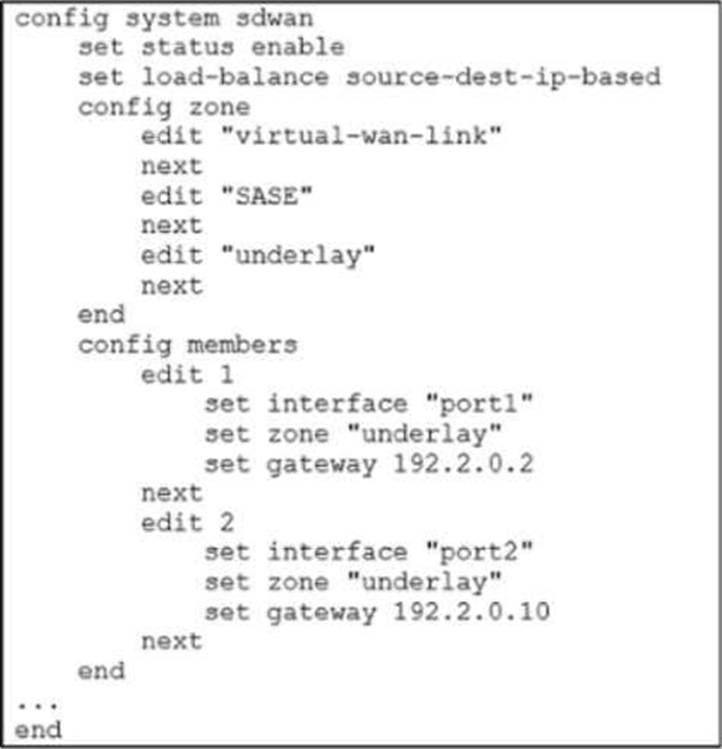

7. Refer to the exhibit.

Which algorithm does SD-WAN use to distribute traffic that does not match any of the SD-WAN rules?

All traffic from a source IP to a destination IP is sent to the same interface.

All traffic from a source IP is sent to the same interface.

All traffic from a source IP is sent to the most used interface.

All traffic from a source IP to a destination IP is sent to the least used interface.

8. Refer to the exhibits.

Exhibit A

Exhibit B

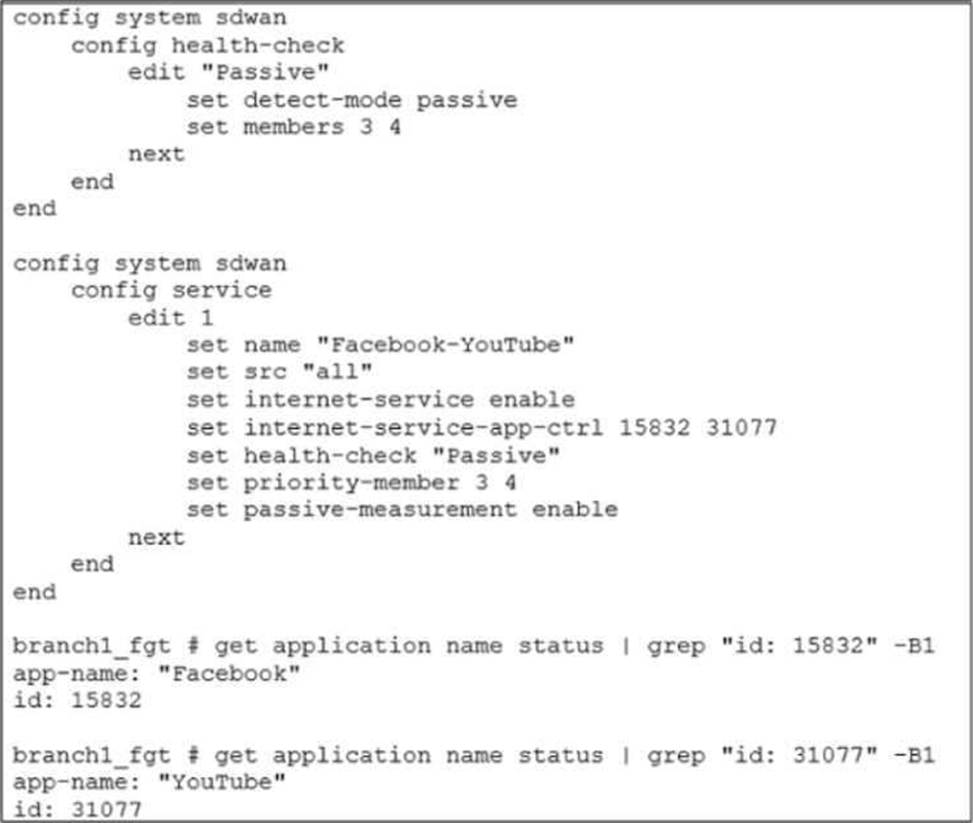

Exhibit A shows the SD-WAN performance SLA configuration, the SD-WAN rule configuration, and the application IDs of Facebook and YouTube. Exhibit B shows the firewall policy configuration and the underlay zone status.

Based on the exhibits, which two statements are correct about the health and performance of port1 and port2? (Choose two.)

The performance is an average of the metrics measured for Facebook and YouTube traffic passing through the member.

FortiGate is unable to measure jitter and packet loss on Facebook and YouTube traffic.

FortiGate identifies the member as dead when there is no Facebook and YouTube traffic passing through the member.

Non-TCP Facebook and YouTube traffic are not used for performance measurement.

9. Refer to the exhibit.

Which two statements about the IPsec VPN configuration and the status of the IPsec VPN tunnel are true? (Choose two.)

FortiGate does not install IPsec static routes for remote protected networks in the routing table.

The phase 1 configuration supports the network-overlay setting.

FortiGate facilitated the negotiation of the T_INET_1_0_0 ADVPN shortcut over T_INET_1_0.

Dead peer detection is disabled.

10. Refer to the exhibits.

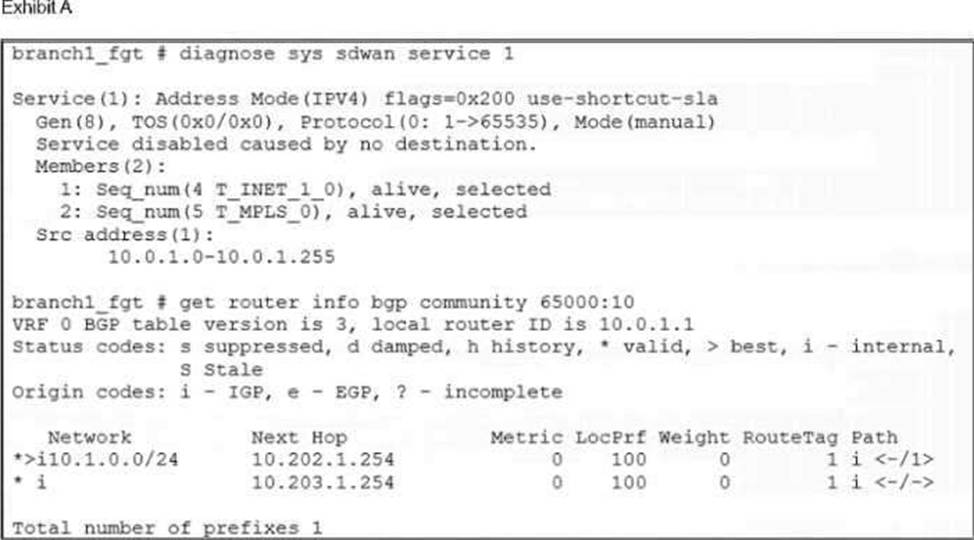

Exhibit A shows the SD-WAN rule status and the learned BGP routes with community 65000:10.

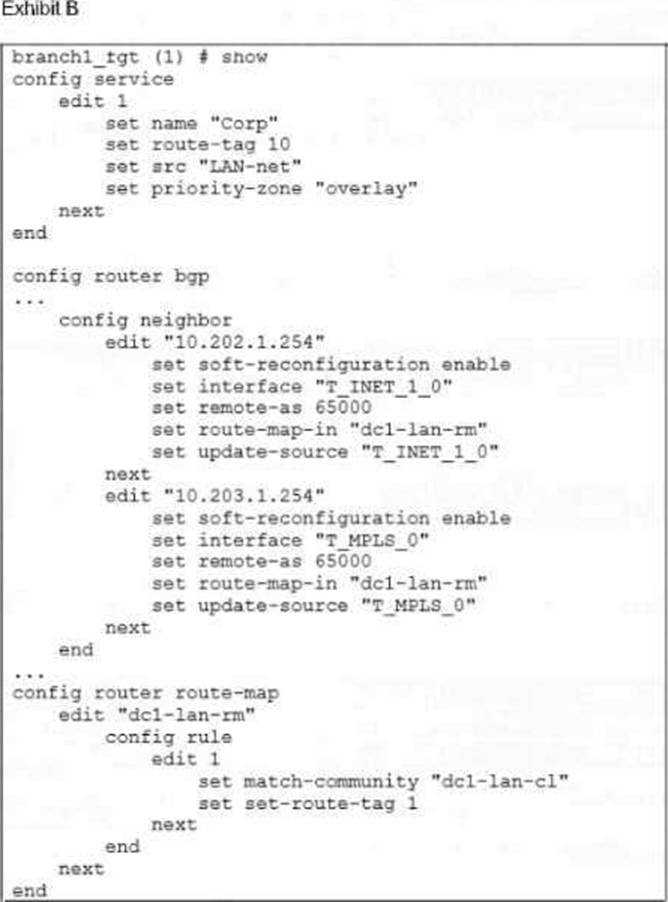

Exhibit B shows the SD-WAN rule configuration, the BGP neighbor configuration, and the route map configuration.

The administrator wants to steer corporate traffic using routes tags in the SD-WAN rule ID 1.

However, the administrator observes that the corporate traffic does not match the SD-WAN rule ID 1.

Based on the exhibits, which configuration change is required to fix issue?

In the dc1-lan-rm route map configuration, set set-route-tag to 10.

In SD-WAN rule ID 1, change the destination to use ISDB entries.

In the dc1-lan-rm route map configuration, unset match-community.

In the BGP neighbor configuration, apply the route map dc1-lan-rm in the outbound direction.

Page 2 of 3

11. What are two advantages of using an IPsec recommended template to configure an IPsec tunnel in a hub-and-spoke topology? (Choose two.)

VPN monitor tool provides additional statistics for tunnels defined with an IPsec recommended template.

FortiManager automatically installs IPsec tunnels to every spoke when they are added to the FortiManager ADO

IPsec recommended template guides the administrator to use Fortinet recommended settings.

IPsec recommended template ensures consistent settings between phase1 and phase2

12. Refer to the exhibit.

An administrator used the SD-WAN overlay template to prepare an IPsec configuration for a hub-and-spoke SD-WAN topology. The exhibit shows the installation preview for one FortiGate device.

In the exhibit, which statement best describes the configuration applied to the FortiGate device?

It is a hub device. It can send ADVPN shortcut offers.

It is a spoke device that establishes dynamic IPsec tunnels to the hub. The subnet range is 10.10.128.0/23.

It is a spoke device that establishes dynamic IPsec tunnels to the hub. It can send ADVPN shortcut requests.

It is a hub device and will automatically discover the spoke devices that are in the SD-WAN topology.

13. Which three matching traffic criteria are available in SD-WAN rules? (Choose three.)

Type of physical link connection

Internet service database (ISDB) address object

Source and destination IP address

URL categories

Application signatures

14. Which two interfaces are considered overlay links? (Choose two.)

LAG

IPsec

Physical

GRE

15. Exhibit A shows the system interface with the static routes and exhibit B shows the firewall policies on the managed FortiGate.

Exhibit B C

Based on the FortiGate configuration shown in the exhibits, what issue might you encounter when creating an SD-WAN zone for port1 and port2?

port1 is assigned a manual IP address.

port1 is referenced in a firewall policy.

port2 is referenced in a static route.

port1 and port2 are not administratively down.

16. Which two settings can you configure to speed up routing convergence in BGP? (Choose two.)

update-source

set-route-tag

holdtime-timer

link-down-failover

17. Refer to the exhibits.

Exhibit A shows the packet duplication rule configuration, the SD-WAN zone status output, and the sniffer output on FortiGate acting as the sender. Exhibit B shows the sniffer output on a FortiGate acting as the receiver.

The administrator configured packet duplication on both FortiGate devices. The sniffer output on the sender FortiGate shows that FortiGate forwards an ICMP echo request packet over three overlays, but it only receives one reply packet through T_INET_1_0.

Based on the output shown in the exhibits, which two reasons can cause the observed behavior? (Choose two.)

On the receiver FortiGate, packet-de-duplication is enabled.

The ICMP echo request packets sent over T_INET_0_0 and T_MPLS_0 were dropped along the way.

The ICMP echo request packets received over T_INET_0_0 and T_MPLS_0 were ofloaded to NP

On the sender FortiGate, duplication-max-num is set to 3.

18. Which SD-WAN setting enables FortiGate to delay the recovery of ADVPN shortcuts?

hold-down-time

link-down-failover

auto-discovery-shortcuts

idle-timeout

19. Refer to the exhibits.

Exhibit A

Exhibit B

Exhibit A shows a site-to-site topology between two FortiGate devices: branch1_fgt and dc1_fgt.

Exhibit B shows the system global and system settings configuration on dc1_fgt.

When branch1_client establishes a connection to dc1_host, the administrator observes that, on dc1_fgt, the reply traffic is routed over T_INET_0_0, even though T_INET_1_0 is the preferred member in the matching SD-WAN rule.

Based on the information shown in the exhibits, what configuration change must be made on dc1_fgt so dc1_fgt routes the reply traffic over T_INET_1_0?

Enable auxiliary-session under config system settings.

Disable tсp-session-without-syn under config system settings.

Enable snat-route-change under config system global.

Disable allow-subnet-overlap under config system settings.

20. What three characteristics apply to provisioning templates available on FortiManager? (Choose three.)

You can apply a system template and a CLI template to the same FortiGate device.

A CLI template can be of type CLI script or Perl script.

A template group can include a system template and an SD-WAN template.

A template group can contain CLI templates of both types.

Templates are applied in order, from top to bottom.

Page 3 of 3

21. Refer to the exhibit.

Which configuration change is required if the responder FortiGate uses a dynamic routing protocol to exchange routes over IPsec?

type must be set to static.

mode-cfg must be enabled.

exchange-interface-ip must be enabled.

add-route must be disabled.

22. Which are two benefits of using CLI templates in FortiManager? (Choose two.)

You can reference meta fields.

You can configure interfaces as SD-WAN members without having to remove references first.

You can configure FortiManager to sync local configuration changes made on the managed device, to the CLI template.

You can configure advanced CLI settings.

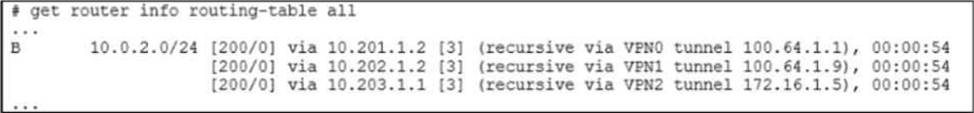

23. Refer to the exhibit.

The device exchanges routes using IBGP.

Which two statements are correct about the IBGP configuration and routing information on the device? (Choose two.)

Each BGP route is three hops away from the destination.

ibgp-multipath is disabled.

additional-path is enabled.

You can run the get router info routing-table database command to display the additional paths.

24. Refer to the exhibit.

Based on the exhibit, which action does FortiGate take?

FortiGate bounces port5 after it detects all SD-WAN members as dead.

FortiGate fails over to the secondary device after it detects all SD-WAN members as dead.

FortiGate brings up port5 after it detects all SD-WAN members as alive.

FortiGate brings down port5 after it detects all SD-WAN members as dead.

25. What are two benefits of choosing packet duplication over FEC for data loss correction on noisy links? (Choose two.)

Packet duplication can leverage multiple IPsec overlays for sending additional data.

Packet duplication does not require a route to the destination.

Packet duplication supports hardware ofloading.

Packet duplication uses smaller parity packets which results in less bandwidth consumption.

26. Refer to the exhibit.

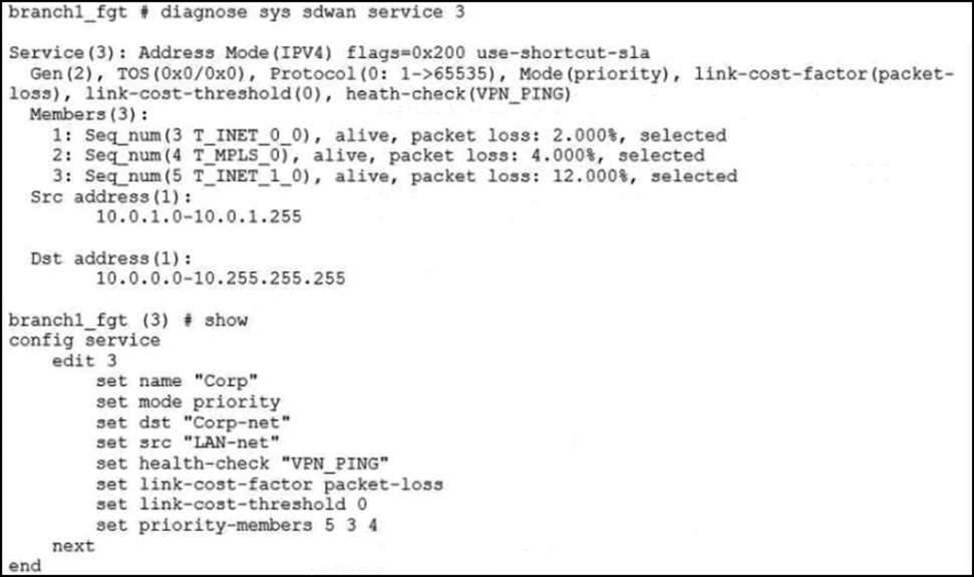

The exhibit shows the SD-WAN rule status and configuration.

Based on the exhibit, which change in the measured packet loss will make T_INET_1_0 the new preferred member?

When all three members have the same packet loss.

When T_INET_0_0 has 4% packet loss.

When T_INET_0_0 has 12% packet loss.

When T_INET_1_0 has 4% packet loss.

27. What are two benefits of using the Internet service database (ISDB) in an SD-WAN rule? (Choose two.)

The ISDB is dynamically updated and reduces administrative overhead.

The ISDB requires application control to maintain signatures and perform load balancing.

The ISDB applies rules to traffic from specific sources, based on application type.

The ISDB contains the IP addresses and port ranges of well-known internet services.

28. Which statement about SD-WAN zones is true?

An SD-WAN zone can contain only one type of interface.

An SD-WAN zone can contain between 0 and 512 members.

You cannot use an SD-WAN zone in static route definitions.

You can configure up to 32 SD-WAN zones per VDO

29. Which two statements about the SD-WAN zone configuration are true? (Choose two.)

The service-sla-tie-break setting enables you to configure preferred member selection based on the best route to the destination.

You can delete the default zones.

The default zones are virtual-wan-link and SAS

An SD-WAN member can belong to two or more zones.

30. Exhibit.

The exhibit shows the output of the command diagnose sys sdwan health-check status collected on a FortiGate device.

Which two statements are correct about the health check status on this FortiGate device? (Choose two.)

The health-check VPN_PING orders the members according to the lowest jitter.

The interface T_INET_1 missed one SLA target.

There is no SLA criteria configured for the health-check Level3_DN

The interface T_INET_0 missed three SLA targets.
