Candidates who successfully passed Juniper JNCIS-SP JN0-363 exam will demonstrate a profound understanding of networking technology in general and Juniper Networks service provider routing and switching platforms. To pass successfully, you can have the most updated Juniper JN0-363 JNCIS-SP study guide as the learning materials. You can choose this good learning materials to make your preparation well. We guarantee that you can pass the Service Provider Routing and Switching, Specialist (JNCIS-SP) exam successfully. Juniper JN0-363 free demo questions are below for learning.

Page 1 of 2

1. Which BGP attribute Is used to detect touting loops?

AS path

MED

local preference

next hop

2. What is the correct order of BGP attributes for active route selection?

next hop -> local preference -> AS path -> MED -> origin

next hop -> AS path -> local preference -> origin -> MED

next hop -> local preference -> AS path -> origin -> MED

next hop -> origin -> local preference -> AS path -> MED

3. Which new field is added to an IPv6 header as compared lo IPv4?

version

checksum

fragment offset

flow label

4. How does a Junos device learn about MAC addresses when II is first connected to an Ethernet LAN?

The device sends out a network broadcast message asking tor all devices and MAC addresses on the network and stores this information In addition lo the interface from which the response was received.

The device learns the destination MAC addresses from traffic in the network and stores this MAC address in addition to the interface from which the traffic was received.

The device learns the source MAC addresses from traffic in the network and stores this MAC address in addition to the interface from which the traffic was received.

The device sends out a network multicast message asking for all devices and MAC addresses on the network and stores this Information in addition to the interface from which the response was received.

5. Which LSA type does an OSPF ABR use to advertise external routes generated by an NSSAASBR into the backbone?

Type 5

Type 7

Type 3

Type 1

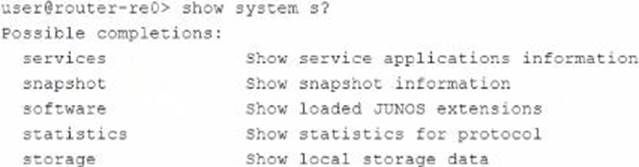

6. Exhibit

You have configured graceful RE switchover (GRES), however you cannot complete the show system switchover command.

Referring to the exhibit, what is the problem?

The command is only available if non-stop routing is enabled.

The command is only available on the backup Routing Engine.

The command is only available If a backup router is configured.

The command is only available If graceful restart is enabled.

7. Which statement is correct about IS-IS?

IS-IS is a distance vector routing protocol.

IS-IS is a path vector routing protocol.

IS-IS is a link-state routing protocol.

IS-IS is a classful routing protocol.

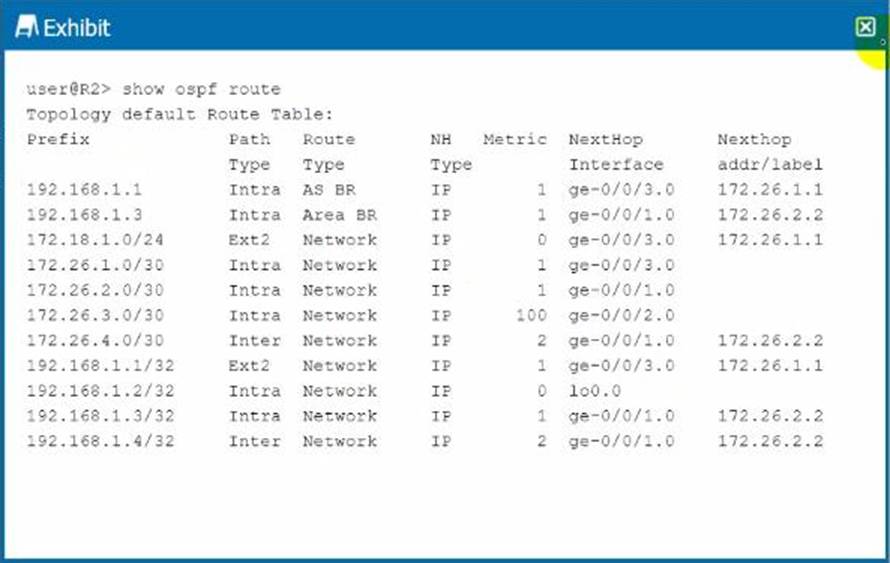

8. Exhibit

Which prefix in the output shown in the exhibit is an external prefix injected by an OSPF router?

192.168. 1. 3

172.18. 1. 0/24

192.108. 1. 4

172.26.4.0730

9. Interface ge-0/0/0.0 connecls yout network to your ISP. You want to advertise this interface address as an Internal route In OSPF without creating a neighbor with your ISP.

In this scenario, how is this task accomplished?

Remove interface ge-0/0/0.0 from OSP

Create a generated route for Interface ge-0/0/0.0.

Add ge-0/0/0.0 as a passive interface In OSP

Configure a static route for Interface ge-0/0/0.0.

10. Which two statements are correct about IS-IS? (Choose two.)

A level 1 only router can never form an adjacency with a level 2 only router.

For level 2 adjacencies, the area IDs can be different.

For level 2 adjacencies, the area IDs must be the same.

A level 1 only router can form an adjacency with a level 2 only router.

Page 2 of 2

11. What are two types of SlDs used in segment touting? (Choose two.)

node

adjacency

link

interface

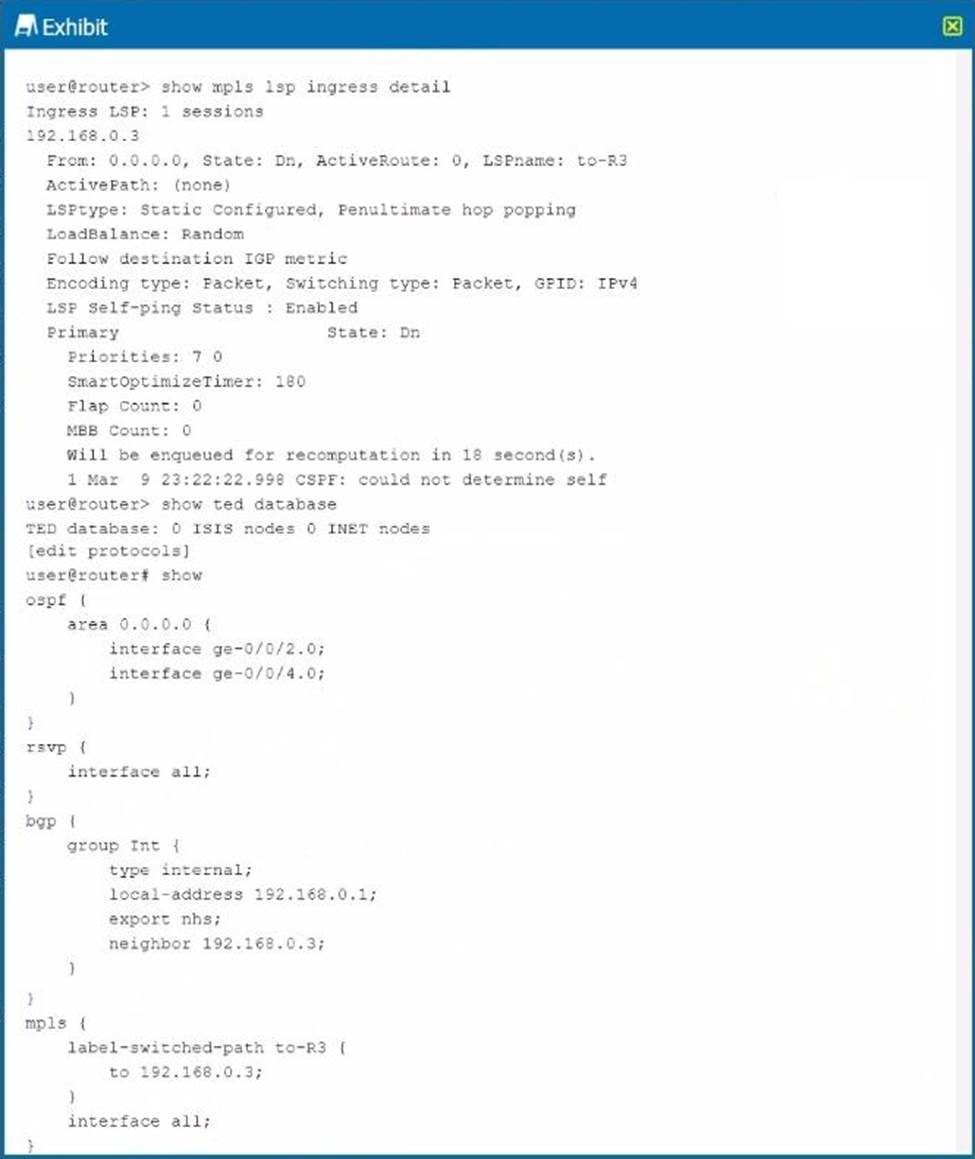

12. Exhibit

The LSP is not establishing correctly.

Referring to the exhibit, what should you do to solve the problem?

Enable traffic engineering for the OSPF protocol.

Enable traffic engineering for the IS-IS protocol.

Enable traffic engineering for the BGP protocol.

Enable traffic engineering for the RSVP protocol.

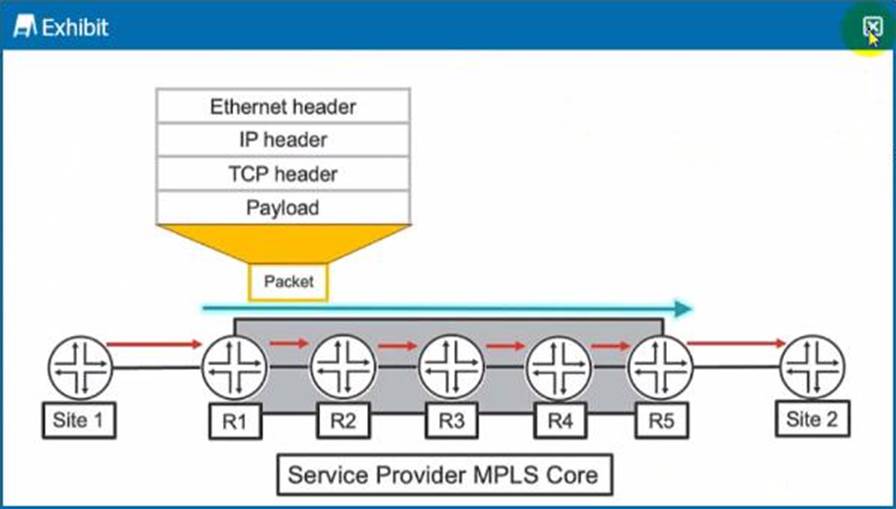

13. Exhibit

Which two statements ate correct about the actions taken as the packet traverses the service provider MPLS network from Site 1 to Site 2 as shown in the exhibit? (Choose two.)

R2 will perform a lookup using the mpls.0 table.

R1 will perform a lookup using the lnet.3 table.

R1 will perform a lookup using the mpls.0 table.

R2 will perform a lookup using the inet.3 table.

14. Which two statements ate correct about the community BGP attribute on a Junos device? (Choose two.)

The community attribute is a mandatory BGP attribute.

If the community attribute is present, it is ignored and deleted in the BGP updates.

If the community attribute is present, it should be passed unchanged in the BGP updates.

The community attribute is an optional BGP attribute.

15. You want to see a detailed list of all established BGP sessions.

In this scenario, what would be a valid command to accomplish this task?

show bgp neighbor

show bgp summary

show rouse receive-protocol bgp <neighbor IP address>

show rouse protocol bgp

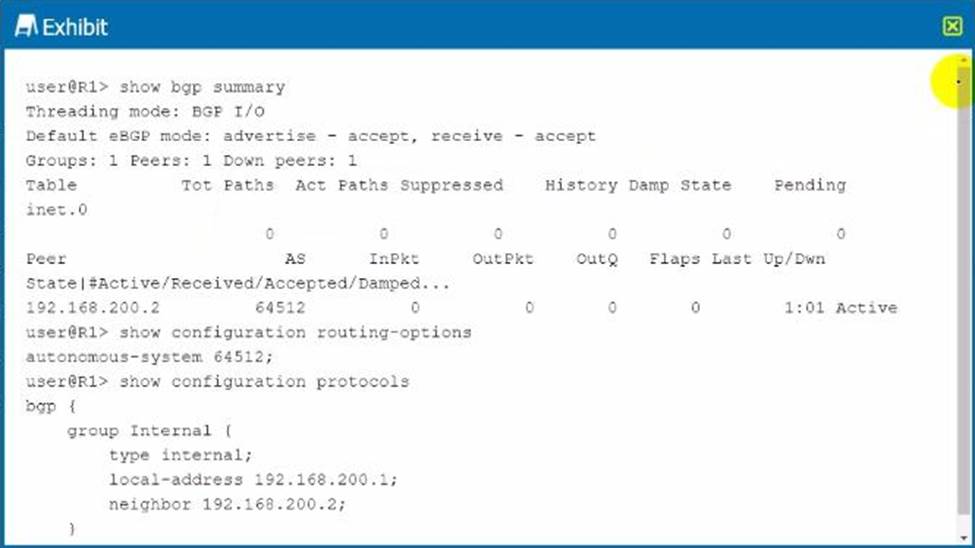

16. Exhibit

Referring to the exhibit, internal BGP between R1 and R2 is not establishing.

What is the problem In this scenario?

R1 does not have a route to 192.168.200.2.

R1 and R2 must each have unique AS numbers.

R1 needs to be configured with an explicit router I

R1 needs to be configured with a next-hop self policy.
