OMG-OCSMP-MBA400 exam online questions are online for you to study. Passing OMG-OCSMP-MBA400 exam can help you earn OMG certification. The real OMG-OCSMP-MBA400 exam contains 90 multiple-choice questions, and you have 105 minutes to finish the test. The required passing score for OMG-OCSMP-MBA400 exam is 71% (answer 64 questions correctly). Free OMG-OCSMP-MBA400 exam questions are below.

Page 1 of 3

1. Choose the coned answer.

A department director is responsible (or monitoring the system development processes in a large systems engineering company. In a few systems engineering projects, irritation developed recently between the specialists department's requirements analysts and the system engineering design team, although the methodology had been introduced a couple of years ago.

How could the director resolve this conflict?

Tell the teams' supervisors to encourage better teamwork, and check every other week to see how the teams have improved

Let each team decide on its individual development methodology. The teams' supervisors will have to budge gaps where they occur

Note if the systems engineering methodology still works with the company's business processes, and make modifications where needed

Repeat the methodology training tor the people involved and check every other week to see if the methodology usage by the teams is improving

2. Choose the correct answer

A project is developing a distributed information system that will be "open" in the following ways.

(a) The system-level models will be published for the world to see.

(b) Others will be encouraged to submit change requests to the system models. (Changes will be identified by stereotypes.)

(c) Others will be encouraged to develop additional subsystems and plug-ins The information system is expected to be in use for at least ten years

What is(are) the most important consideration(s) in selecting a SysML modeling tool for this project?

the ability to enforce strict compliance with XM

AP233 and SysML standards

compatibility with XM

the ability to enforce strict compliance with UML4SysM

and the ability to query models based on user-defined criteria

compatibility with XM

the ability to enforce strict compliance with the SysML standard and the ability to query models based on user-defined criteria

compatibility with AP233; the ability to enforce strict compliance with the SysML standard; and the ability to query models based on user-defined criteria

3. Choose the correct answer

How does SysML support systems engineering methodologies?

The generalization mechanism enables fitting of SysML to a methodology

The stereotype and profile mechanisms enable lilting of SysML to a methodology.

SysML can only support a systems engineering methodology if it is used at the starting point of the project

SysML does not support system engineering methodologies, as it is a language

4. Choose the correct answer

The main diagram type in Modelica corresponds most closely to which SysML diagram type?

act

bdd

ibd

par

5. Choose the correct answer.

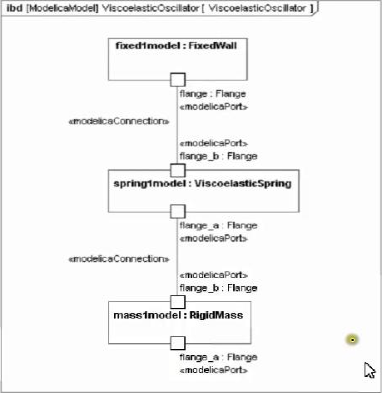

Given the following diagram:

Assume that all stereotypes required by the SysML-Modehca Transformation specification (if any) have been applied but are not necessarily shown here Assume that FixedWall. ViscoelasticSpring. and RigidMass are fully defined in a Modelica library.

What else must be done to get this model ready for solving according to the SysML-Modelica Transformation specification?

Provide specific values. Also define a parametric diagram that includes equations for Kirchhoffs Laws consistent with the above ibd.

Provide specific values Nothing else is required, as Kirchhoff’s I laws are automatically taken care of consistent with the above ibd

Nothing - it is ready as-is

Modelica cannot handle this type of nonlinear model

6. Choose the correct answer

Which statement about working in UPDM compliance level 1 is true?

It allows users to express all the views in the architecture using only SysML elements

It allows users to bring SysML elements into the architecture to enhance the hand-off between Systems of Systems and Systems.

SysML elements are only used in the Systems view to enhance the hand-off process between Systems of Systems and Systems.

There is no benefit jas SysML is not used in compliance level 1

7. Choose the correct answer

Modehca solvers can produce large volumes of time-based results (such as time-based power usage), but requirements are often based on scalar values such as "maximum peak power" and 'average power usage".

Which of the following is generally the most effective way to verify such requirements?

Import the Modelica time-based power usage results into SysML Then use SysML parametncs to calculate these scalar values, and compare them to the requirements

ave the Modelica solver also compute these scalar values from its time-based power usage results Then import the resulting scalar values into SysM

and compare them to the requirements.

Use the SysML4Modelica profile to transform the Modelica time-based power usage results into these scalar values Then import the resulting scalar values into SysML, and compare them to the requirements.

Modelica models can only produce time-based results and thus cannot support scalar results like these, which must either be calculated using a different tool or measured on physical prototypes Then enter the resulting scalar values into SysML, and compare them to the requirements

8. Choose the correct answer

An engineer wants to place formal pre-conditions and post-conditions on an activity diagram.

Which language is suitable and most compatible with SysML?

BPMN

English

OCL

OWL

VSL

XMI

XML

9. Choose the correct answer

Which aspect of a MBSE-based engineering project falls outside of the scope of AP233?

diagrams

slate machines

lifecycle stages

issue management

10. Choose the correct answer

The director of field support for a company just found out that one of the company's systems engineers is a Model Based Systems Engineering expert, and wants to discuss how MBSE might impact how the company's products are supported In the field

What is the most important aspect of system development methodologies the engineer Is likely to discuss?

how field support operations can be modeled using MBSE methods

how software design patterns can be used to suggest Pre Planned Product Improvement (P3I) opportunities

how the system model can be used to facilitate change proposals, support plans, and training in the operational environment

how operational evaluation (OPEVAL) plans can be developed and cross-checked In a system modeling environment, using DoDAF operational views

Page 2 of 3

11. Choose the correct answer

A bank manager and his core team want to consolidate internal processes, detect conflicts among processes, and improve customer experience. The core team includes the lead person from each of the process areas (such as transactions, customer management, and marketing).

The manager wants to architect the overall system processes based on the following.

(1) Relationships among the internal processes should be clearly identifiable and managed.

(2) The core team members should be able to improve their processes simultaneously.

(3) The architecture should aid visualization and analytics

Which model organization approach would be most efficient?

create a SysML model for each of the core processes and for each relationship between processes

create a SysML model that contains only one diagram showing all the core processes and their relationships

create a SysML model for each of the core processes, and manage relationships between processes in a spreadsheet

create a SysML model that contains a package for each of the core processes, and a package for the overall consolidated process and related relationships

create a SysML model that contains a package for each of the core processes, a package for each of the relationships between processes, and a package for the overall consolidated process

12. Choose the correct answer

What information is required to define a viewpoint in SysML in addition to stakeholders?

affects, methods, process purpose

concerns, languages, methods, purpose

concerns languages, tools, purpose

methods, languages, rationale, responsibilities

13. Choose the correct answer

What distinguishes a software development methodology from a systems development methodology?

All current systems development methodologies are extensions of previous software development methodologies.

Software development methodologies employ formal architecting techniques, while systems development methodologies tend not to.

Systems development methodologies tend to focus on holistic issues, while software development methodologies tend to focus on high quality code.

For software intensive systems, there is effectively no difference between system development methodologies and software development methodologies

There is no difference Any methodology good for software development should be good for systems development.

14. Choose the correct answer.

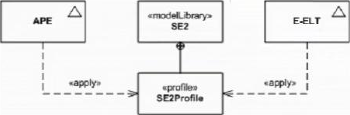

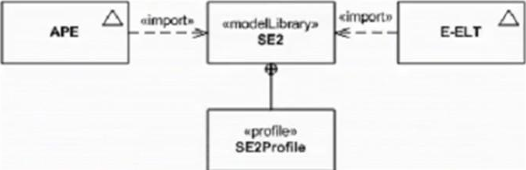

An engineer has defined a profile, SE2Profile, for the APE model. Another model, E-ELT, requires the same profile.

What is the best way to share the profile?

A)

Option A

Option B

Option C

Option D

15. Choose the correct answer.

Given the following diagram fragment:

Which criterion indicates that a decision node construct such as this is well-formed?

No activity Ai will negate the corresponding guard [gi]

Taken together, the guards cover all possibilities and are mutually exclusive.

Each guard legal can be evaluated without changing the state of any item referenced by the corresponding activity or action Ai

The guards are understandable by stakeholders in the development effort.

16. Choose the correct answer

Which SysML diagram type is a modification of the UML Class diagram?

Parametric Diagram

Internal Block Diagram

Package Diagram

Block Definition Diagram

17. Choose the correct answer

What is a fundamental goal of UPDM?

to define a common means of expressing DoDAF and MODAF architectures using the same underlying metamodel

to capture the common aspects of MODAF and DoDAF elements, removing the elements and views that are not common

to define a common means of expressing DoDAF and MODAF architectures so that they can be modeled solely in SysML

to separate the DoDAF and MOOAF metamodels but give them a common underpinning by creating a separate UML profile for each of them within UPDM

18. Choose the correct answer.

A project is evaluating several modeling tools which comply in vanous degrees to SysML abstract and concrete syntax. The customer will allow some deviation from full compliance, as long as technical risk is minimized.

Which tool characteristics are required for this project?

full compliance with abstract syntax, and limited deviations from concrete syntax

full compliance with concrete syntax, and limited deviations from abstract syntax

limited deviations from abstract and concrete syntax

full compliance with both abstract and concrete syntax, nothing less is adequate

19. Choose the correct answer

Which technique is typically used to support the automated generation of development artifacts from a SysML model?

Define simple structures for artifacts and avoid complex layouts for office documents

Apply stereotypes to model elements to add the metainformation required for the generation process.

Adapt open-source model transformation tools originally developed for the software engineering discipline

SysML already includes a concept for model-driven generation of office documents

20. Choose the correct answer

What is a common reason for extending SysML with a profile?

SysML requires the definition of a profile

A profile adds methodology- and domain-specific concepts to SysM

A profile adds user-specific needs to the model in a systems engineering project

A profile overwrites unwanted SysML concepts and tool-vendor-specific extensions

Page 3 of 3

21. Choose the correct answer

A large company uses SysML to design energy systems, and plans to use a specialized proprietary analysis tool (X) for evaluating and comparing the cost, performance, and reliability of energy system alternatives. The engineers at the company want to automatically create analysis models in X from design models in SysML.

The achieve this, they will use the following process:

(1) Specify the appropriate module in X10 be used for each block m the SysML design model.

(2) Write scripts that use these mappings to automatically create analysis models in X

Which approach is most flexible when enabling this automation?

define a package that contains a note for each type of module in

and anchor notes to the blocks in the design model

define a profile that contains a stereotype for each type of module m

and assign the stereotype to the blocks in lite design model

define a profile that contains a tag for each type of X in the tool, and assign the stereotype to the blocks in the design model

define a profile that contains a stereotype with a tag that can store the name of the module in

apply the stereotype to the blocks in the design model, and populate the tag

define a package that contains a block for each type of module m X (e g module_1 block) and create a dependency relationship from the module block to the blocks in the design model

22. Choose the correct answer

For a system with stringent real-time requirements and power-consumption constraints, which concern would lead the designer to employ the MARTE profile?

ensuring traceability between structure and behavior

ensuring traceability between requirements and structure

ensuring that the structure could be precisely modeled and that analysis was supported

ensuring that the relationship between system response time and power consumption could be captured in a parametric diagram

23. Choose the correct answer.

What is one of the most common reasons to utilize a SysML-Modehca integration?

to solve and analyze system advanced statistics models

to solve and analyze system dynamics models

to execute and analyze system activity models

to execute and analyze system state machine models

24. Choose the correct answer

What happens to the elements of a model when a profile is applied to the model?

The stereotypes defined in the profile are applied to the model's metamodel elements

The stereotypes defined in the profile are available to be applied to any element in the model.

The stereotypes defined in the profile may be applied to elements sharing compatible metaclasses

The stereotypes defined in the profile ate automatically applied lo the elements sharing compatible metaclasses

25. Choose the correct answer.

A modeling team supervisor has defined a stereotype of block named *projectBlock» and wants to prevent any use of an unstereotyped block

What must the supervisor do?

delete «block» from the profile

give * blocks the (abstract) keyword in the profile

mark the extending stereotype with the {strict} keyword

mark the extending stereotype with the {required} keyword

attach a note to «block» in the profile forbidding its use

26. Choose the correct answer

in executing a model-based systems engineering methodology, what should the first step m building the model be?

Define the domain model structure

Define the initial model organization.

Define the initial set of system requirements

Define the business or enterprise use cases.

27. Choose the correct answer.

A team of designers led by a hardware systems engineer is finding it difficult to manage the design of a distributed air-conditioning system_ Each system component Is a complex assembly with multiple design models (such as MCAD. ECAD, and Spreadsheets).

The system engineer wants to architect an approach that achieves the following

(1) provides a unified view of the design of the system and Its components

(2) provides a unified model for generating a bill-of-materials

(3) provides sufficient semantics to propagate changes made in one design model to another

Assume that the system engineer Is allocated resources to purchase or develop the new software required for this architecture

Which approach would be most effective from a MBSE perspective?

import each design model into a single SysML model and then create relationships between the design models

import each design model into a separate SysML model, link the SysML models together, and then create relationships between the design models

create a SysML block structure representing (he system and its components, and then create relationships between the blocks and the design models

create a SysML package structure representing the system and its components, and then create relationships between the packages and the design models

create a SysML activity structure representing the design process of each component, and then create relationships between the activity parameters and the design models

OMG-OCSMP-MBA400 Exam Questions Online – Your Big Helper

OMG-OCSMP-MBA400 Exam Questions Online – Your Big Helper

Share this post

Leave a Reply Cancel reply

Related Posts

Free OMG-OCEB2-FUND100 Exam Actual Questions

OMG-OCSMP-MU100 Exam Dumps for OMG-Certified Systems Modeling Professional – Model User

Online Questions for OMG-OCSMP-MBI300 Exam
