1. Choose the correct answer.

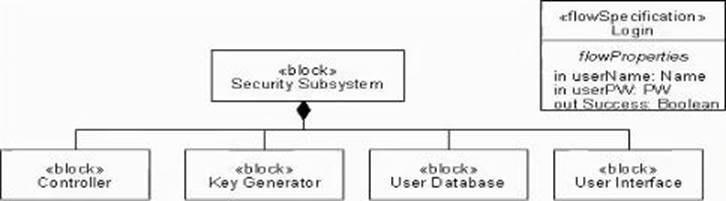

Given the following bdd fragment:

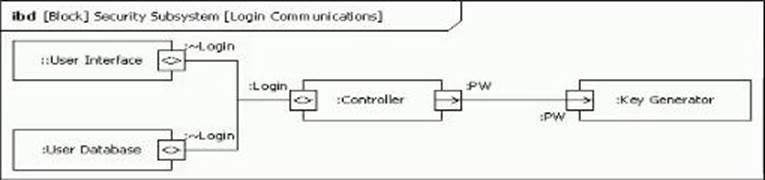

A user provides login credentials to the User Interface, and the Controller passes this information to the User Database The User Database in turn validates the user name and password (typed by PW In the «flow Specification») and responds with a Boolean value indicating whether the login was successful. The Controller provides the password to the Key Generator if login was successful.

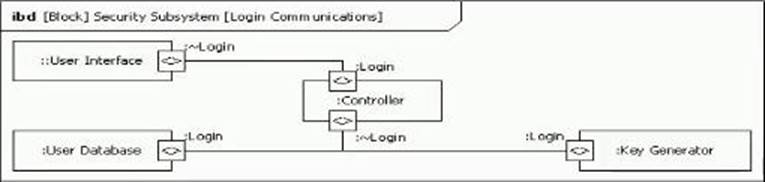

Which diagram correctly models these communications? If two or more options are correct, select the one that passes no unnecessary information between any two blocks If two or more correct options pass the same information between blocks, select the one with the fewest ports.

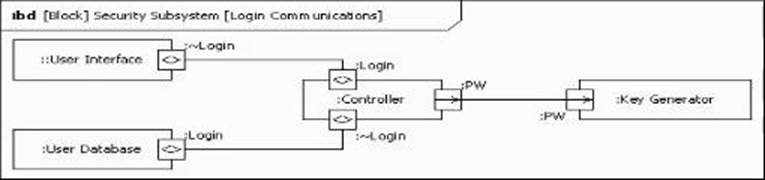

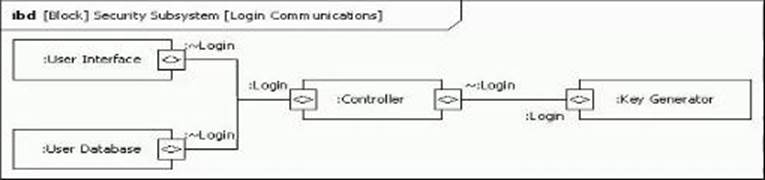

A)

Option A

Option B

Option C

Option D

2. Choose the correct answer

Where may constraint blocks be defined?

on any diagram

only on parametric diagrams

only on block definition diagrams

only on block definition diagrams or package diagrams

only on block definition diagrams or parametric diagrams

only on block definition diagrams or internal block diagrams

3. Choose the correct answer.

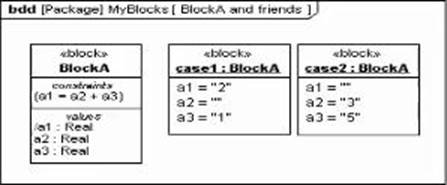

Given the model composed of the following diagram:

The modeler has set all shown values us inputs and next intends to solve the mode that is, to calculate the outputs. Assume nothing relevant has been left out.

What is wrong with this model?

The modeler set a1 as an input value in case1.

Block A cannot be used by both easel and case2.

Both easel and case2 should not be underlined.

The slash (/) in property a1 of BlockA is an error that paramethes will assume to be a division sign.

4. Choose the correct answer

What is an efficient way to represent highly reused patterns of interaction on sequence diagrams?

an Interaction use referencing an interaction defined on a separate sequence diagram

an interaction template construct that is instantiated from the referring sequence diagram

the call interaction operator with an operand referring to the reusable Interaction defined elsewhere

an activation on the referring sequence diagram allocated to another activation on the referenced diagram

5. Choose the correct answer

Which statement is true about the read only keyword when it appears next to a property?

It states that the corresponding property is provided for reading purposes only

It specifies that the corresponding property cannot be redefined

It specifies that the value of the corresponding property cannot change during the lifetime of its owner.

It specifies that the value of the corresponding property can be changed by its owner, but can only be read by other blocks

6. Choose the correct answer.

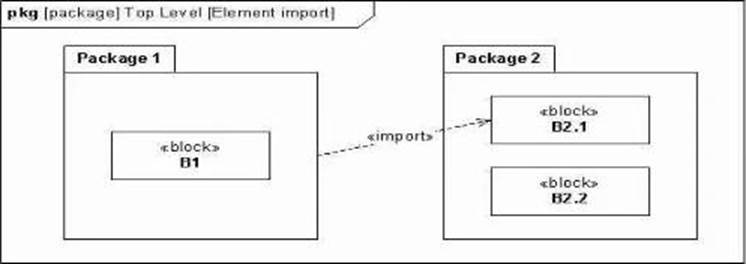

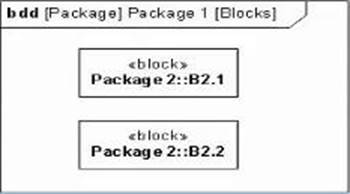

Given the following diagram:

Which diagram is correct?

A)

Option A

Option B

Option C

Option D

7. Choose the correct answer.

What are the possible values of the enumeration Control Value?

suspend and resume

enable and disable

suspend, resume, enable and disable

It has no values, but is intended for a modeler to extend with their own control values.

8. Choose the correct answer.

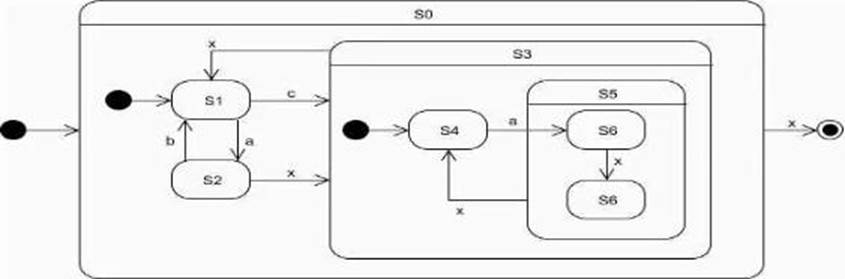

Given the following statement machine, and assuming that it starts from initialization:

What is the shortest event sequence that will place this state machine in its final state?

a, b, x

c, a, x

c, a, x, x

a, b. c, x

a, b, c, a, x, x

9. Choose the correct answer.

Which diagram type is commonly used to create a bill of materials?

Package diagram

Activity diagram

Parametric diagram

Requirements diagram

internal block diagram

Block definition diagram

10. Choose the correct answer.

What is one key advantage of using SysML parametrics versus traditional derived properties?

A derived property requires an additional constraint expression, whereas SysML parametrics does not.

OCL-based constraint expressions can be used with SysML parametrics but not with derived properties

it takes many more steps to specify derived properties in the typical tool compared to specifying constraint blocks.

SysML parametrics supports non causal expressions, whereas a derived property involves an expression with a fixed output direction

Page 2 of 3

11. Choose the correct answer.

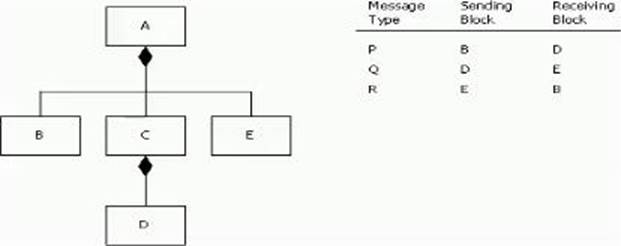

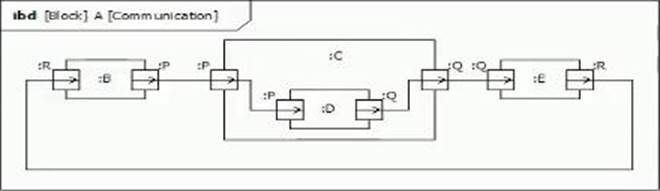

Given the following bdd fragment and table showing messages sent between blocks:

Block C Is encapsulated; none of the other blocks are.

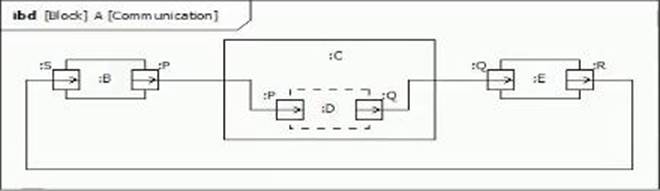

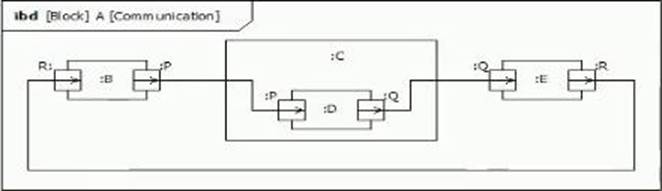

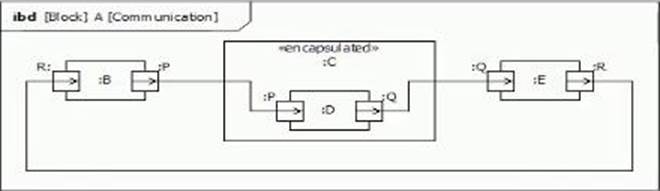

Which Ibd for block A has the correct assignment of flow ports and connectors? If two or more options are correct, select the one with the fewest ports.

A)

Option A

Option B

Option C

Option D

12. Choose the correct answer.

A system engineer has created a SysML block structure for his system-of-interest. Two of the blocks (M and E) represent system-level abstractions of components that will be designed by a mechanical engineer and an electrical engineer m their respective computer-aided design (CAD) tools.

Given that the CAD models are wrapped as blocks B_mcad and B_ecad, what type of diagram should the system engineer use to quantitatively relate the properties of B_mcad and B_ecad to their system level abstractions M and E respectively?

an activity diagram

a parametric diagram

an internal block diagram

a block definition diagram

13. Choose the correct answer

How can the composition (black diamond) relationship be used to relate Requirements?

Composition allows requirements to inherit properties and requirements relationships

Composition allows role names to be assigned to sub-requirements thus providing a contextual reference

Composition allows a particularly useful requirement to be reused by multiple higher level requirements or specifications

Composition allows a requirement to be decomposed into sub-requirements as long as they don't add to or change the meaning of the original requirement.

Requirements cannot use composition. They are not classifiers

14. Choose the correct answer.

Which package diagram fragment depicts the definitions of the stereotypes Hardware and Software?

A)

Option A

Option B

Option C

Option D

15. Choose the correct answer.

Given the following diagram fragment:

What does the multiplicity at the actor end mean?

At most two Initiator actor instances can perform the use case

Two Initiator actor instances are required to trigger the use case

Two Initiator actor instances are required to participate in the use case.

Multiplicities carry no meaning on use case diagrams

16. Choose the correct answer.

An engineer is building a model of a system that includes both Low Earth Orbit (LEO) and Geosynchronous Orbit (GEO) satellites.

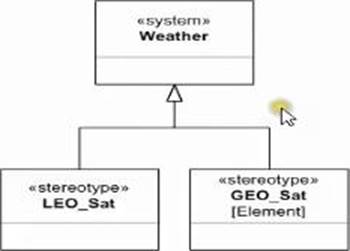

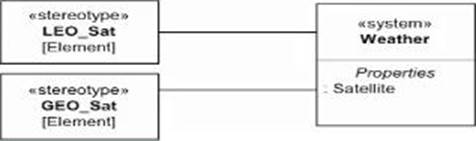

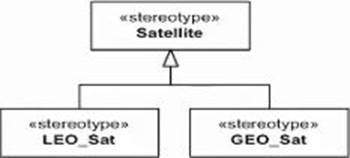

Which diagram fragment shows a well-designed set of domain stereotypes that can be applied to the blocks representing those system elements?

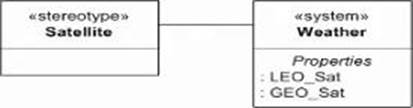

A)

Option A

Option B

Option C

Option D

17. Choose the correct answer.

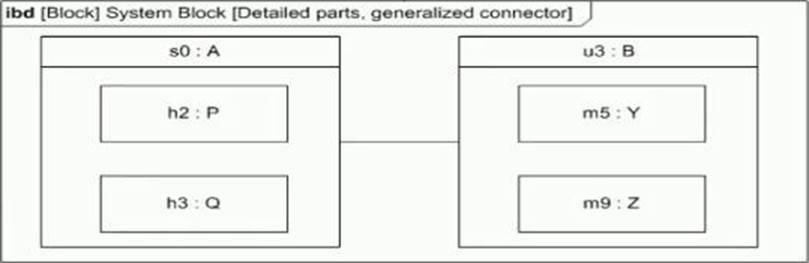

Given the following diagram:

What needs to be determined in order to model the connection between components s0 and u3 in more detail?

whether component s0 subclasses component u3

which parts of each component participate in the connection

which parts of each component participate in a reference association

whether any part that belongs to component s0 subclasses a pan that belongs to component u3

18. Choose the correct answer.

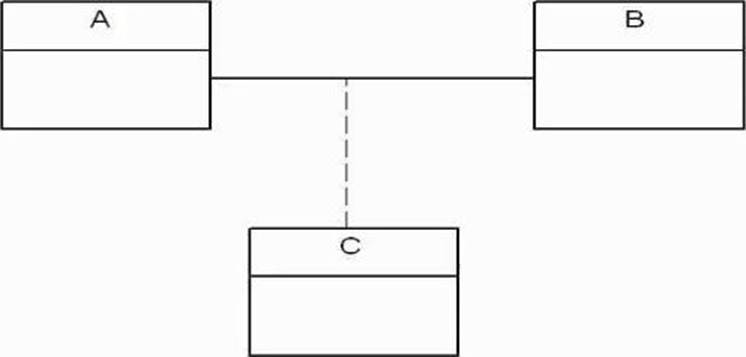

Given the following diagram:

What is element C?

a tag value

an association block

a connector property

a connector illustration

a relation information element

19. Choose the correct answer.

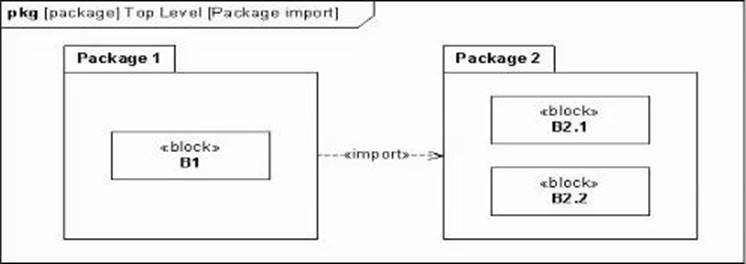

Given the following diagram:

Which diagram is correct?

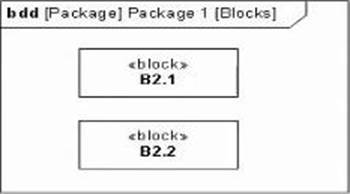

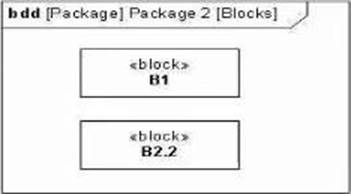

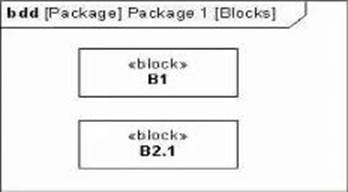

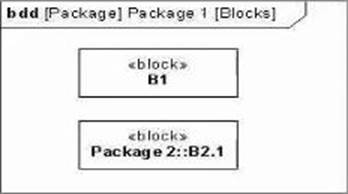

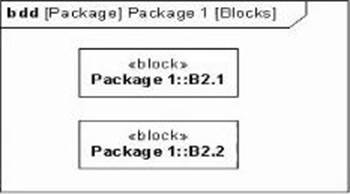

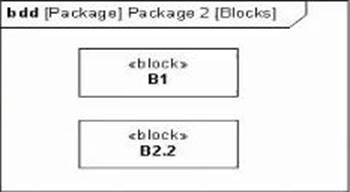

A)

Option A

Option B

Option C

Option D

20. Choose the correct answer

Which diagram fragment validly depicts adding properties to a stereotype?

A)

Option A

Option B

Option C

Option D

Page 3 of 3

21. Choose the correct answer.

What is a property that may be calculated by analysis of the model?

a derived property

an analysis property

a calculated property

an estimation property

a replacement property

22. Choose the correct answer.

When is it possibly useful to create property-specific types?

when a block is typed by another block with similar properties

when it is important to ensure uniform generalization of all blocks

when it is important to ensure uniform specialization of all block properties

when a block that types several part properties exists in multiple variants

23. Choose the correct answer.

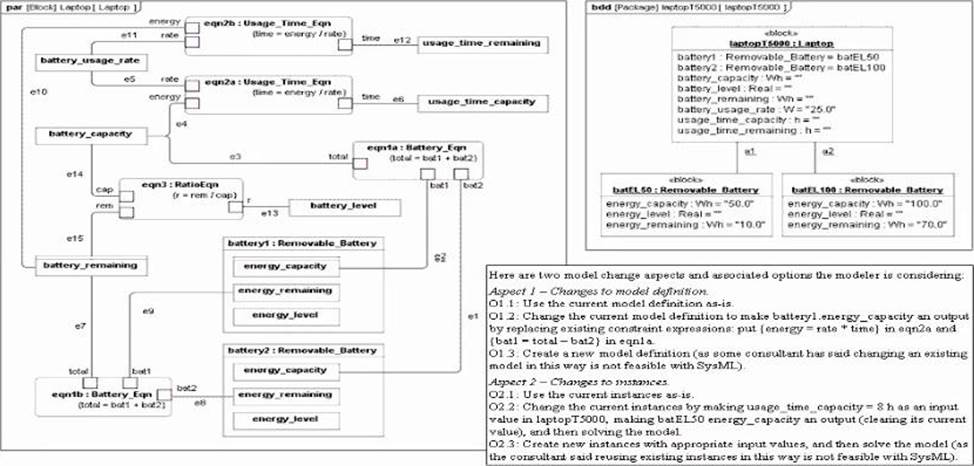

The essentials of a laptop battery capacity model are shown In the following diagrams (where the value types W, h and Wh stand for watl, hour, and watt-hour respectively). Assume that the instance values shown are inputs, and that nothing relevant has been omitted.

The designer needs to determine what the energy_capacity of battery 1 should be to enable a laptop usage_time_capacity time of 8 hours .

Which combination of the options listed in the text box in the figure will achieve this Intent with minimal changes (including minimal new aspects)?

O1.1 and O2 1

O1.1 and O2 2

O1 1 and O2 3

O1.2 and O2.1

O1 7 and O2.2

O1.2 and O2.3

O1 3 and O2 3

24. Choose the correct answer

In a state machine which behavior can be interrupted by a transition which leaves the current state?

a do behavior

an entry behavior

an exit behavior

the effect of an internal transition

25. Choose the correct answer.

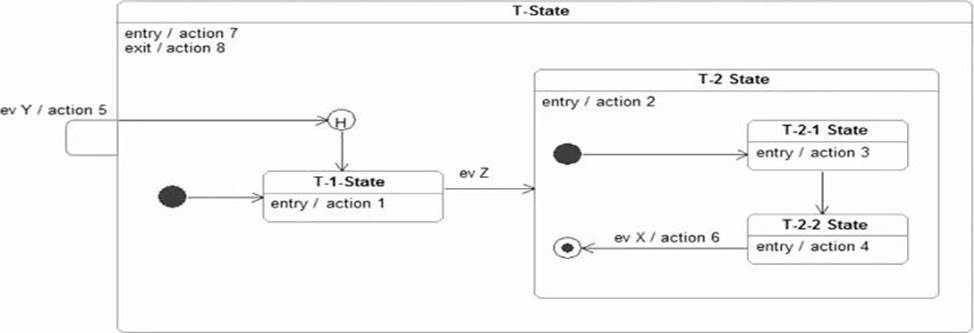

Assume the following state machine is In the T-1 State when ev Z occurs:

Subsequently ev Voccurs.

Which sequence of actions will be executed?

action 2

action 2 action 3

action 2 action 4

action 3

action 4

action 5 action 2 action 3

action 5 action 2 action 4

action 5 action 1 action 2 action 3

action 5 action 1 action 2 action4

action 8 action 5 action 7 action 2 action 3

action 8 action 5 action 7 action 2 action 3 action 4

action 8 action 5 action 7 action 2 action 4

26. Choose the correct answer.

Which SysML construct specifies a probability distribution to the values of a property such as a basic interval distribution between min and max?

a range property

an interval property

a probability property

a distributed property

27. Choose the correct answer

The following are behavioral requirements for an automobile electric window

(1) When the window button is moved into the up position and the window is not fully up the window shall begin to move up

(?) When the window button is moved into the down position and the window is not hilly down, the window shall begin to move down

(3) When the window button is released or the window reaches the fully up or fully down position, the window shall stop moving

(4) Requirements (1-3) apply when the ignition is on. However, turning the ignition off shall lake effect only after the window has stopped moving.

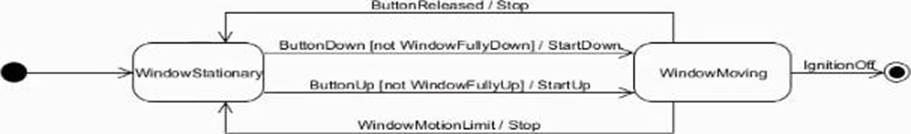

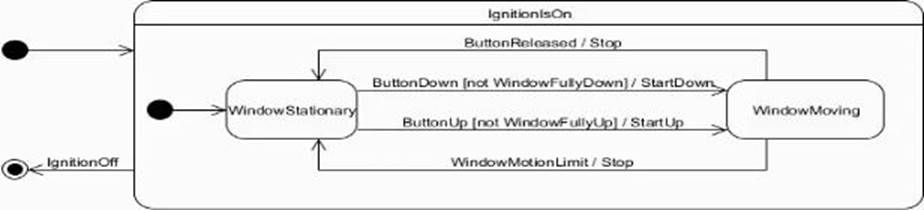

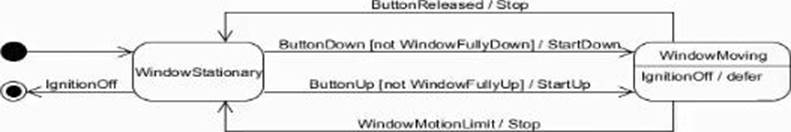

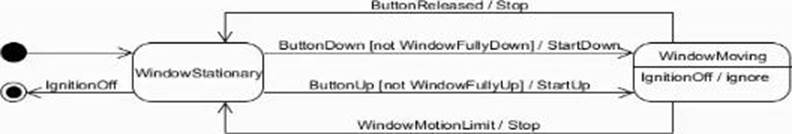

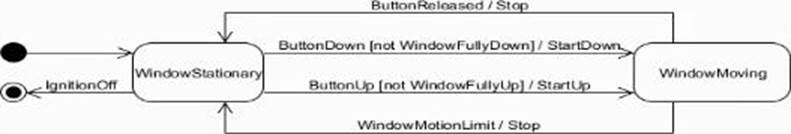

Which state machine diagram fragment describes the required behavior?

A)
